Flip Flop - Buttons, LEDs - 12V

Flip Flop - Bistable multivibrator - Buttons, LEDs - 12V - Flip Flop Factory

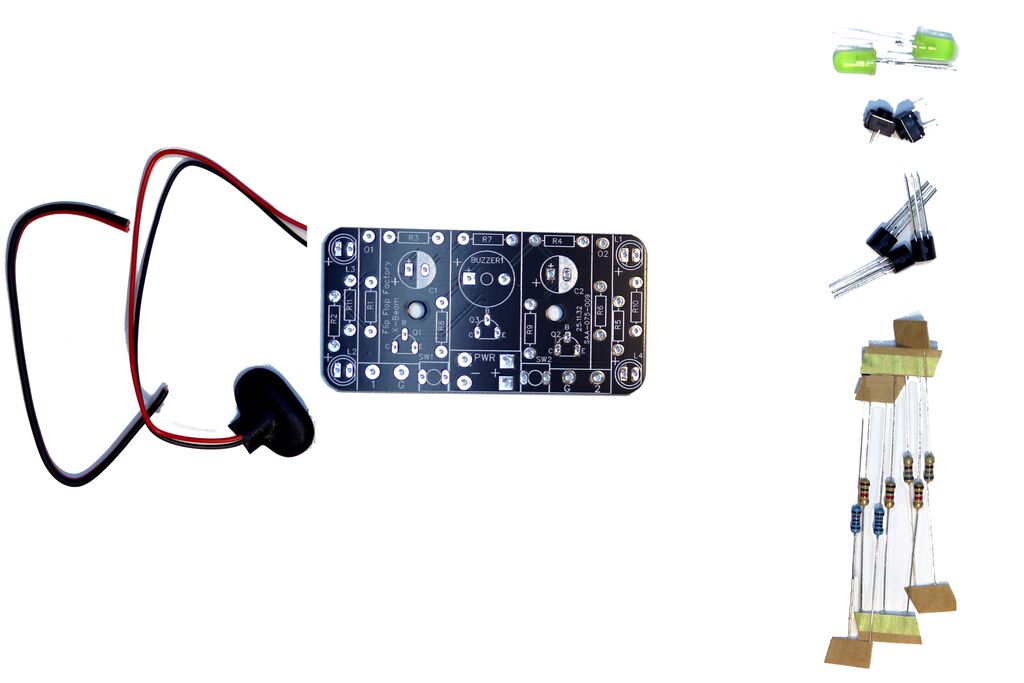

Flip Flop - Bistable multivibrator - Buttons, LEDs - 12V is a comprehensive electronic kit.

Kit Information

A flip-flop is a fundamental building block of digital electronics. It's a bistable multivibrator that can store one bit of binary information (0 or 1). Flip-flops are essential for:

What is Flip Flop - Bistable multivibrator - Buttons, LEDs - 12V Electronic Kit?

Flip Flop - Bistable multivibrator - Buttons, LEDs - 12V is an electronic circuit kit from Sadat Akhavi Academy, featuring flip-flop circuits with different LED beam configurations. It combines practical electronics with hands-on circuit assembly experience.

Kit Configurations

This kit comes in different LED beam configurations, each requiring specific components:

• H-Beam Configuration (SAA-00073) - Horizontal LED beam pattern
• X-Beam Configuration (SAA-00075) - Diagonal cross LED beam pattern

Each configuration demonstrates the same flip-flop logic but with different visual outputs, showing how component variations can create different results from the same core circuit.

Compatible Kits

The following kits are compatible and share the same flip-flop circuit foundation:

• SAA-00073 - H-Beam LED Configuration
