Fortress Sentinel Security - Magnet Module

Fortress Sentinel Security Sensor - Magnet Module is a comprehensive mechanical and structural kit designed for learners who want to explore mechanical engineering, assembly techniques, and Laser-Cut components.

What is Fortress Sentinel Security Sensor - Magnet Module Structural Kit?

Fortress Sentinel Security Sensor - Magnet Module is a mechanical Fortress Sentinel Security Sensor - Magnet Module assembly kit from Sadat Akhavi Academy, featuring a modular chassis design with structural components, Laser-Cut parts, and laser-cut enclosures. It combines practical mechanics with hands-on assembly experience.

Key Features

• 🏗️ Modular chassis design - Two-piece half-chassis assembly system
• 🔩 Structural hardware - Precision screws, standoffs, and mounting brackets
• 🔴 Laser-Cut components - All structural parts laser-cut for precision (can be 3D-printed as alternative)
• 🖨️ Flexible manufacturing - Laser-cut or 3D-printed options for chassis and PCB mounts
• 📐 Educational assembly - structural assembly and mechanical design
• ⚙️ Integrated electronics mount - Secure PCB mounting system

Use Cases

• Mechanical assembly learning project
• 3D printing and laser cutting demonstrations
• Structural engineering prototype
• Hands-on STEM mechanical workshop
• Custom enclosure and chassis design reference

Learning Objectives

By assembling the Fortress Sentinel Security Sensor - Magnet Module Mechanical & Structural Kit, you will:

• Master chassis assembly techniques with multiple fastening methods
• Understand laser-cut and 3D-printed part design and tolerances
• Learning structural mounting and component placement
• Practice mechanical alignment and precision assembly
• Develop skills with standoffs and spacers
• Explore modular design principles
• Discover manufacturing alternatives (laser-cutting vs. 3D printing)

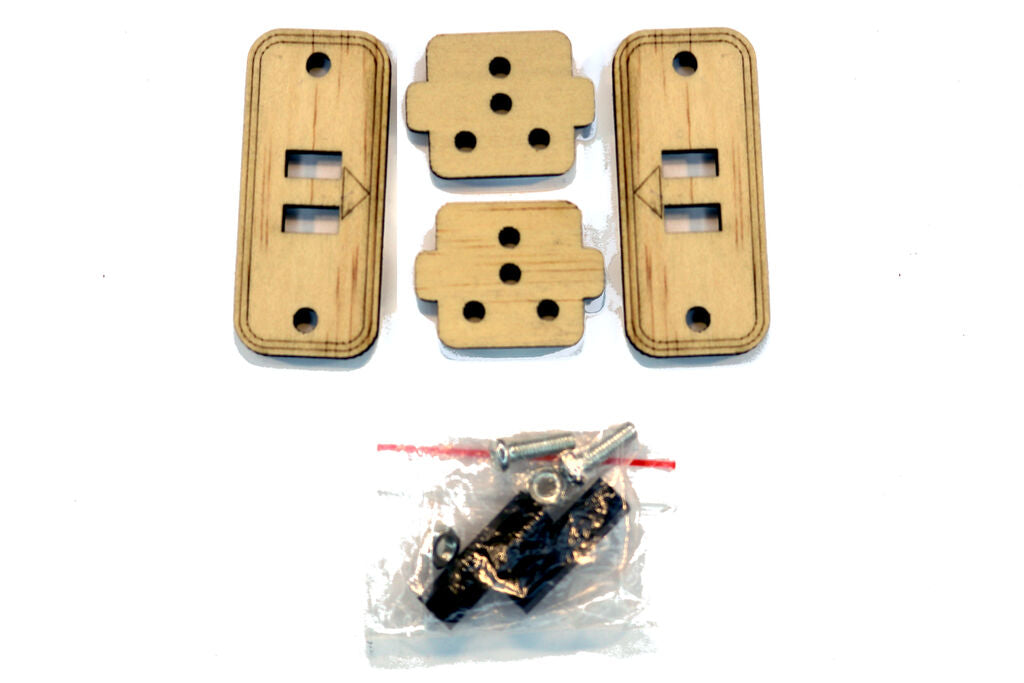

Kit Contents

The Fortress Sentinel Security Sensor - Magnet Module Mechanical & Structural Kit includes:

• Main Chassis Halves (2x) - Laser-cut structural components (can be 3D-printed as alternative)
• PCB Mounts (3x) - Laser-cut precision-engineered mounting brackets (can be 3D-printed as alternative)
• Fastening Hardware - M3 screws (8x), standoff spacers (3x)
• PCB Assembly - Pre-assembled electronic board
• Battery connector - Integrated power system
• Complete documentation - Step-by-step assembly guide with manufacturing options

Assembly Highlights

This kit focuses on:

• Merging chassis halves with precise alignment
• Secure PCB mounting using dedicated mount brackets
• Proper use of standoffs for component spacing
• Battery installation and cable management
• Final assembly verification and testing
