TorchX - Educational Kit

Torch X - Complete Training Kit (Electronics + Structural)

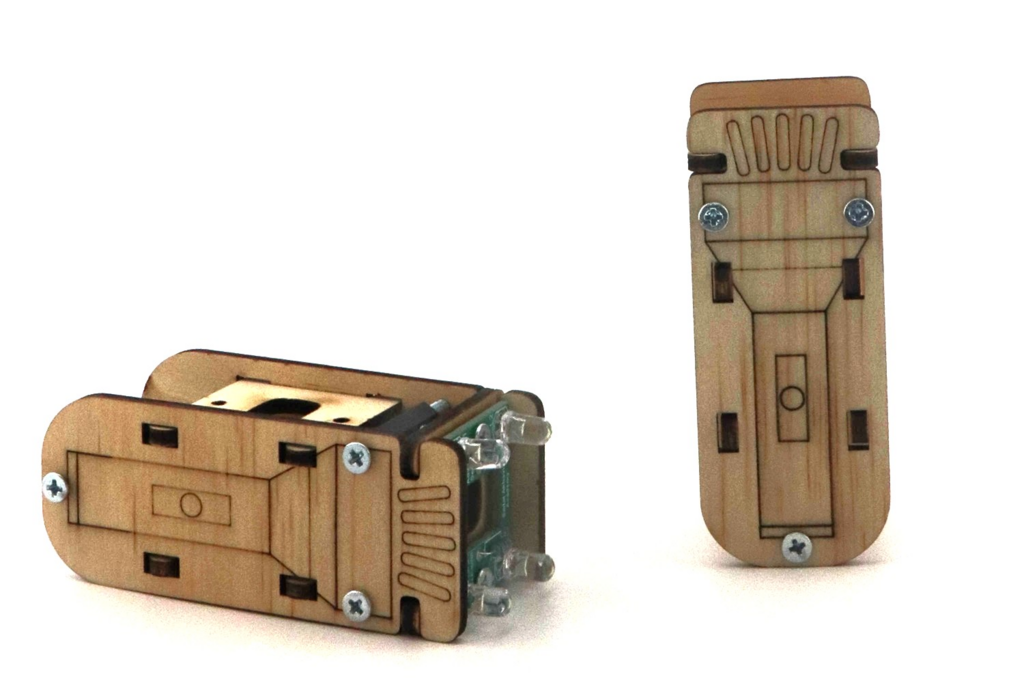

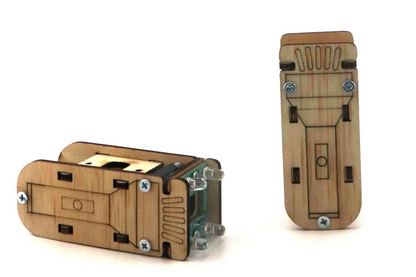

Torch X is a powerful portable 4-LED torch project kit from Sadat Akhavi Academy, combining electronics and structural assembly into a single hands-on STEM learning experience. Part of the LED Adventure Series, the kit teaches both circuit design and structural engineering through building a fully functional flashlight.

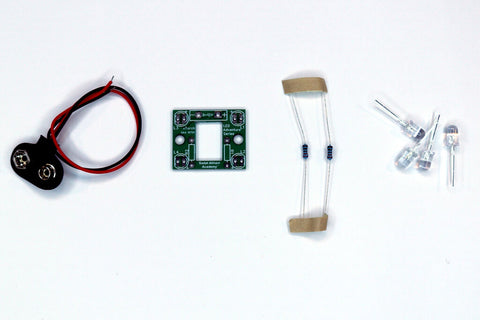

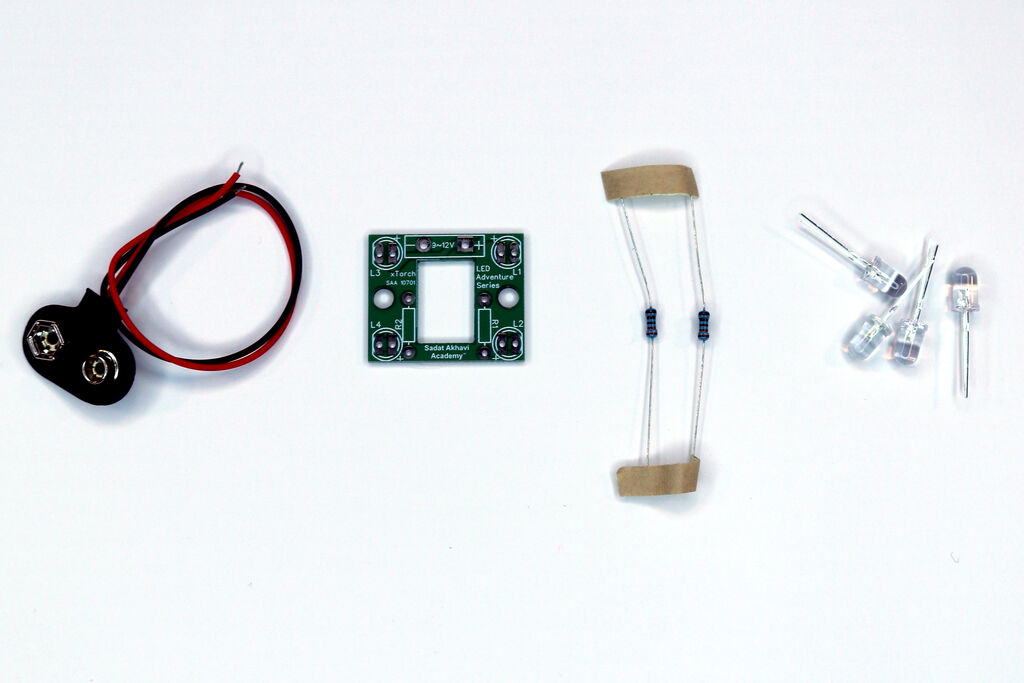

The project integrates an energy-efficient LED lighting circuit with a modular chassis, allowing learners to assemble the electronics while constructing the structural enclosure using precision-cut components.

Learning Objectives

• Understand how LEDs work and their power requirements
• Learn how resistors limit current in LED circuits
• Practice soldering techniques and PCB assembly
• Explore battery systems and power distribution
• Master structural chassis assembly techniques
• Practice structural alignment and precision assembly
• Develop skills using standoffs, screws, and mounting systems
• Understand modular design and manufacturing alternatives
• Practice PCB assembly and component integration

Key Features

• 🔦 Powerful 4-LED torch – Bright and practical for real-world use
• ⚡ Energy-efficient LED circuit – Optimized current-limiting resistor design
• 🏗️ Modular chassis design – Two-piece structural assembly system
• 🔩 Precision structural hardware – Screws, standoffs, and mounting brackets

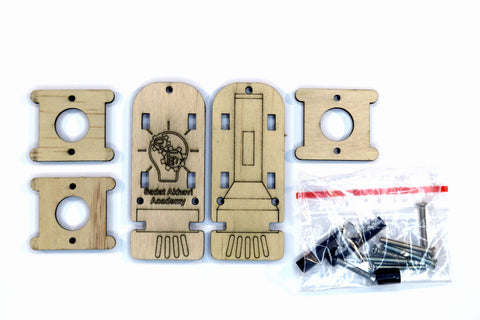

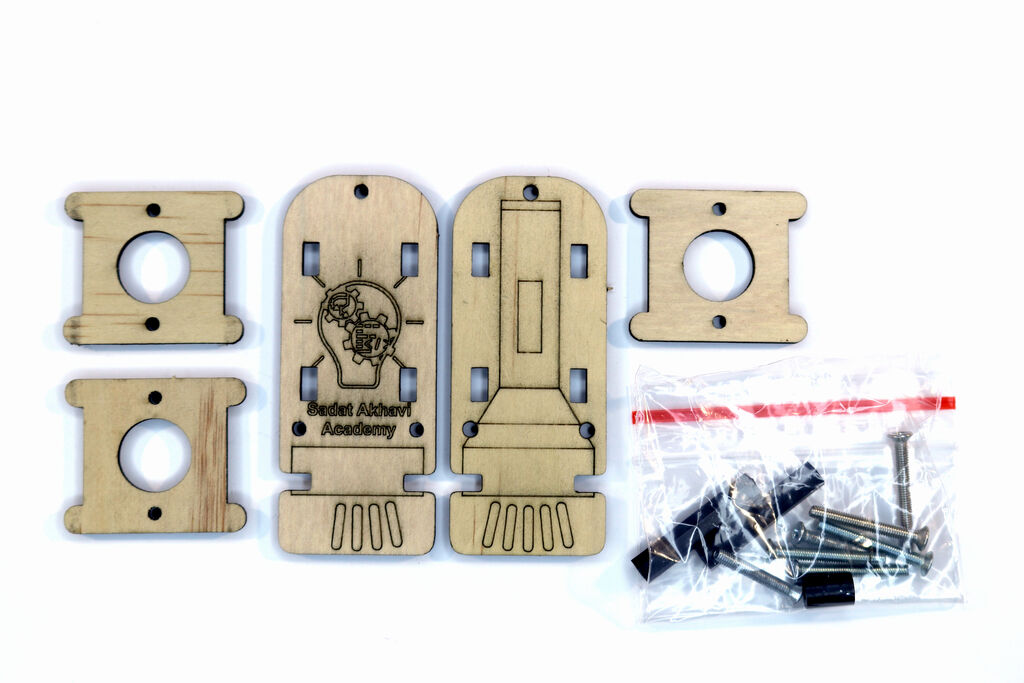

• 🔴 Laser-cut components – High-precision structural parts (3D-printable alternative available)
• 🎯 Compact and lightweight – Portable and easy to assemble
• 🔋 Flexible power options – Operates on 9–12V via battery or USB
• 📚 Hands-on educational design – Learn electronics, mechanics, and manufacturing

Use Cases

• Home torch or emergency light
• Camping or outdoor lighting
• Bicycle or scooter light
• Electronics and mechanical STEM workshop
• Educational prototype for custom lighting projects
• Mechanical enclosure and chassis design reference
